Sandwich PTO

Info

  • Power shiftable PTO for stationary and mobile operation
  • Installation position between motor and gear unit, PTO Location about 12:00; alternatively 11:00 or 13:00 possible
  • Separate oil cooling of the additional gear unit

Advantages

  • High continuous torque on PTO
  • Compact design
  • Depending on the transmission variant constant speed when driving

Technical Data

  • Transmissions: 1.1 / 1.278 / 1.485 / 1.733
  • Continuous torque at the output: 2700 / 2400 /2300 / 1800 Nm
  • Rotation: as the engine
  • PTO flange: 150 KV
  • Length ca. 270 mm (Gearbox)

Sandwich PTO

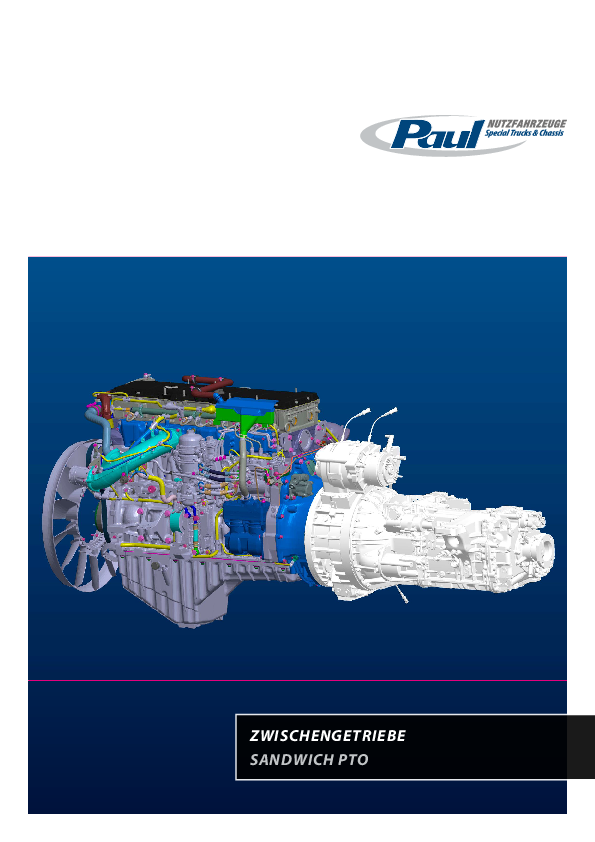

Datasheet

Download

- 677.80K
